SVR Tracking

Previous pageReturn to chapter overviewNext page

clip0559

6974 Convoy Ct.

San Diego, CA  92111

619-639-0245



________________________________________________________________________________________________________

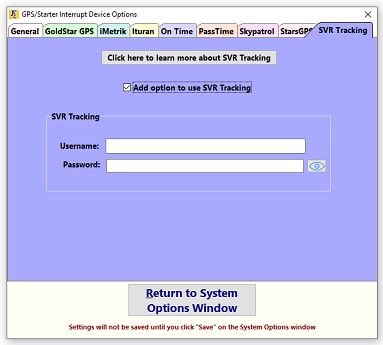

Check the box to add the Option to Use SVR Tracking, and add your SVR Tracking username and password.



clip0557



________________________________________________________________________________________________________



The first location the GPS serial number may be entered is in the Vehicle screen.  Go to Vehicle File , then select the desired vehicle.  Enter the number in GPS Serial #.



clip0539








The second location the GPS serial number may be entered is in the Sales Processing screen. Go to Enter Sales then click on the Customer tab.  Under Starter Interrupt Device options, select the GPS provider from the dropdown, and then enter the serial number below. (If the number was already entered into the Vehicle screen, it will automatically populate in this screen, as well.)





clip0540








The third location the GPS serial number may be entered is through Customer Activity, on a completed sale.  Go to CustomerActivityMenuButton and select the desired customer.








Click on BCustomerProcessing then CustomerInfoCosts.  Click on the Miscellaneous tab.  Under Starter Interrupt options, select the provider, and enter the GPS serial number.  Click on SaveChanges.



StarterInterruptCustomerInfoOpts



________________________________________________________________________________________________________

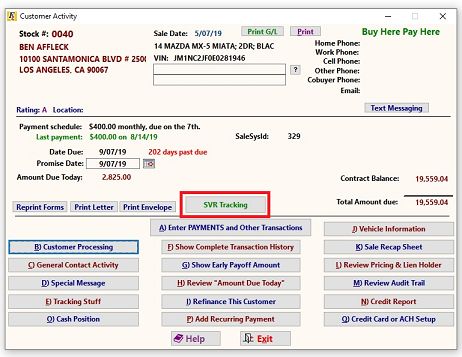

A button on the Main Customer activity screen will log you in to the SVR Tracking Service for that customer.



clip0558



The Frazer integration allows users to locate, enable, and disable a vehicle.



GoldStarButtonOpts








Select an action and wait approximately 10 to 15 seconds and then click OK. Then highlight the task in the menu and click GoldStarViewDetailsButton at the bottom of the screen.










If not enough time has passed, the following message will appear:



GoldStarRequestNotComplete






After enough time has passed, click on GoldStarViewDetailsButton.  Information regarding the location of the vehicle will appear.



GoldStarRequestDetails






Click on GoldStarViewMap to obtain a map showing the location of the vehicle.
